European Standard Single Girder Crane with 15 Ton Lifting Load, Box Shape Girder, and Schneider Electrical Components

Name: European Standard Single Girder Crane with 15 Ton Lifting Load Box Shape Girder and Schneider Electrical Components
Brand: HG Crane
Price: 4500 USD

Buy cheap European Standard Single Girder Crane with 15 Ton Lifting Load, Box Shape Girder, and Schneider Electrical Components product

Place of Origin : Henan, China

Brand Name : HG Crane

Price : 4500~9000 USD

Machinery Test Report : Provided

Max. Lifting Height : 20 m

Product name : European Type Single Girder Electric Overhead Crane

Motor : Global Brand

Warranty : 1 Year

Lifting mechanism : Eliectric Hoist

Ambient temperature : -25°-40°

Span : 5~25.5 m

Girder Type : Box Shape

Power Source : Clients' Requirments

Weight (KG) : 25600 kg

Control method : Cabin or Pendent line or Remote Control

Certification : CE

MOQ : 1 SET

Payment Terms : T/T

Delivery Time : 25 DAYS

Core Components : PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump

Max. Lifting Load : 15 Ton

Video outgoing-inspection : Provided

Power supply : Customer request

Contact Now

Span 5 to 25.5 Meter European Standard 15 Ton Single Girder Crane

Product Overview

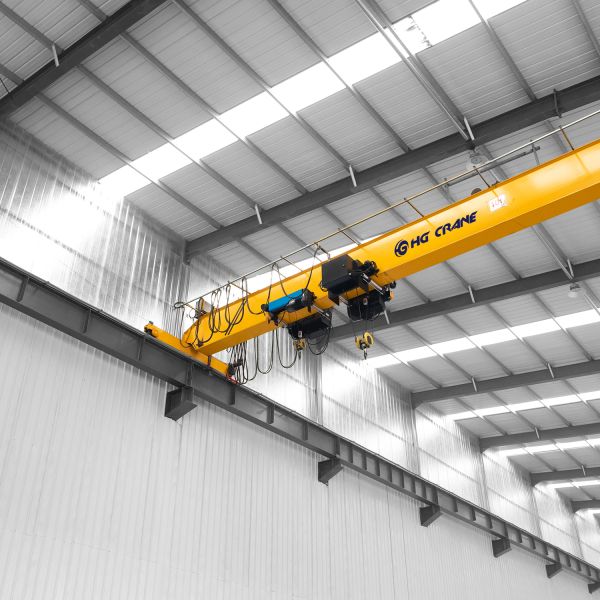

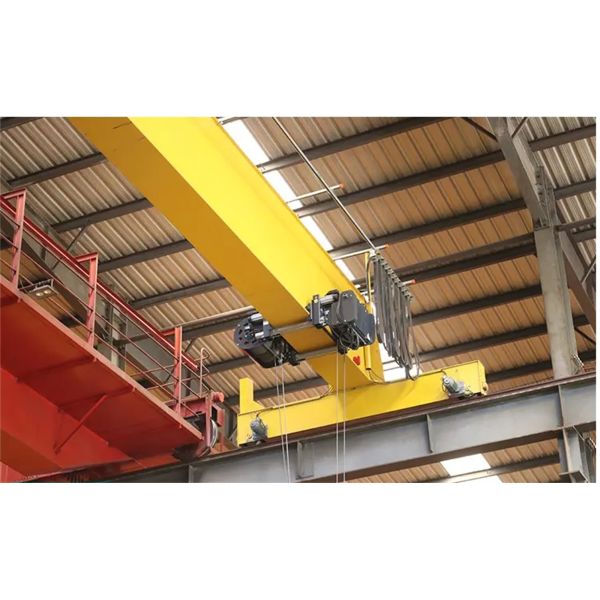

This European standard single girder overhead crane features a box shape girder and electric wire rope hoist, designed specifically for low workshop environments and high lifting height requirements.

European Standard Single Girder Crane with 15 Ton Lifting Load, Box Shape Girder, and Schneider Electrical Components

Advanced Design & Technology

Our HD European standard single girder overhead crane offers superior rigidity, lightweight construction, and outstanding structural design. Engineered to save factory space and reduce investment costs, this crane incorporates advanced technology designed to international standards including DIN (Germany), FEM (Europe), and ISO (International).

Applications

This electric single girder overhead crane is widely used for material handling across multiple industries including machinery manufacturing, warehousing, logistics, food processing, paper making, electronics manufacturing, and various material handling applications.

Premium Components

The crane features a hoist with M5 working class and dual lifting speeds, powered by ABM German brand motors. Traveling motors utilize SEW European brand integrated motor gear units. Both cross and long traveling operations offer variable speed control. The system achieves IP54 protection class and A5/M5 working class under ISO standards.

Key Features

Overhead traveling on steel structures with heavy working duty from A5-A8
Lightweight design reduces steel structure costs
Precise lifting and traveling control
VVF/frequency inverter control with 3-5 operating speeds for stable operation
Six-direction operation capability for extensive working area coverage
Comprehensive safety system including:
- Weight overload protection
- Emergency stop system
- Over current and short-circuit protection
- Phase sequence protection
- Zero position protection
- Voltage loss protection
- Limit switches and stoppers for crane traveling
- Lifting height limit switches

Technical Parameters

Span	m	7.5	10.5	13.5	16.5	19.5	22.5	25.5
Capacity	t	1~32.5t
Total weight	kg	1781~12086
Trolley weight	kg	405~740
Max. Wheel load	kn	13.5~90.94
Travel rail		P24~P43
Lifting speed	m/min	0.8/5	0.8/5	0.8/5	0.8/5	0.8/5	0.8/5	0.8/5
Lifting height	m	≥6	≥6	≥6	≥6	≥6	≥6	≥6
Total motor power	kw	4.31	4.31	4.31	4.31	4.67	4.67	4.67
Crane speed	m/min	3-30	3-30	3-30	3-30	3-30	3-30	3-30
Trolley speed	m/min	2-20	2-20	2-20	2-20	2-20	2-20	2-20
Working duty		M5/A5
