Remote Control Diesel Engine RTG Rubber Tyred Gantry Crane
Product Overview
Rubber Tyred Container Lifting Gantry Crane
The Rubber Tyred Gantry Crane (RTG) is engineered for efficient handling and loading/unloading of international standard containers in ports, terminals, container yards, and transfer stations. Supported on pneumatic rubber tires and typically powered by diesel generators (with optional power sources including cable reel and lithium batteries), this equipment delivers exceptional mobility and operational flexibility.
Available Capacities: 15 Ton, 20 Ton, 25 Ton, 40 Ton, 50 Ton
Key Components
- Main vehicle mechanism for primary mobility
- Small vehicle assembly for precise positioning
- Robust gantry structure
- Advanced power system
- Specialized container spreader
- Main beam and outriggers
- Tire running system
- Lifting trolley assembly
Advanced Features
- Flexible Track-Free Movement: Independently driven tires adapt to various site layouts with strong mobility, enabling quick response to diverse operational requirements
- High-Efficiency Energy-Saving Design: Optimized energy consumption management systems enhance operating efficiency while reducing operational costs and environmental impact
- Intelligent Security System: Integrated PLC and remote monitoring capabilities provide real-time diagnostics and maintenance, ensuring safe, reliable operation and minimizing downtime
Application Areas
This RTG crane is widely deployed in port operations, container terminals, storage yards, and intermodal transfer stations where efficient container handling and maximum operational flexibility are required.

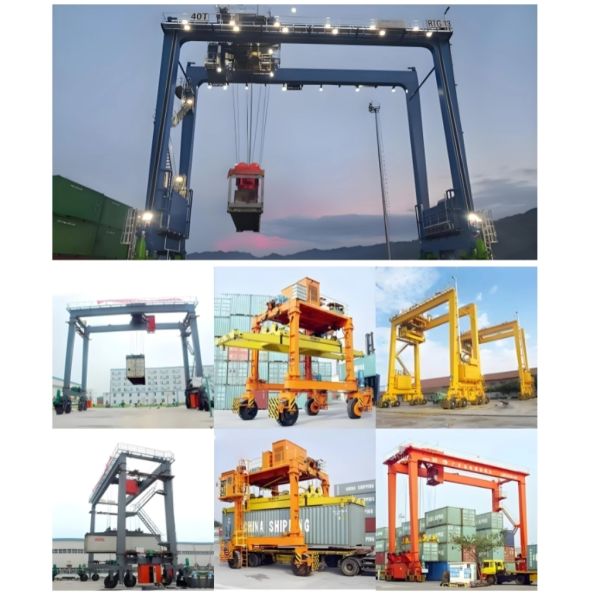

Product Gallery
Product details display
We focus more on details than other brands do
Main Structure
Q235/Q345 carbon structural steel,Large span and high lifting capacity
Traveling Machine
Top-quality rubber,good abrasion resistance,Flexible tuming
Drivers'Room
All-round view,
Comfortable operating console
Trolley
Smooth running, no rail gnawing Low noise,Safe and reliable
Container Spreader
Master link with four legswire rope sling sturdy safety,Flexible control systerm

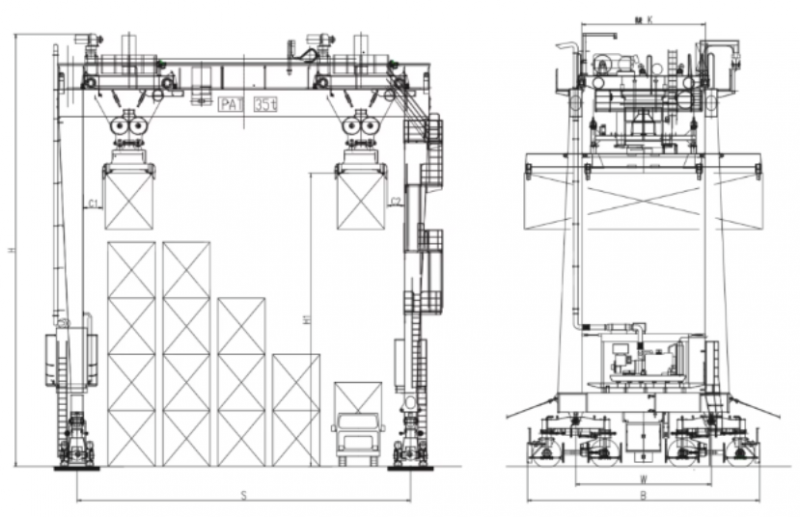

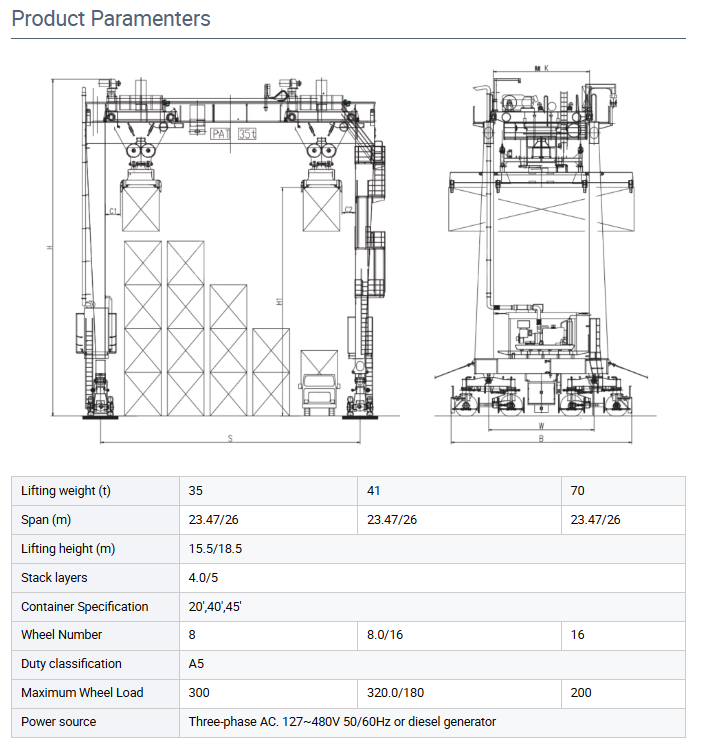

Product Paramenters
| Lifting weight (t) |
35 |
41 |
70 |
| Span (m) |
23.47/26 |
23.47/26 |
23.47/26 |
| Lifting height (m) |
15.5/18.5 |
| Stack layers |
4.0/5 |
| Container Specification |
20',40',45' |
| Wheel Number |
8 |
8.0/16 |
16 |
| Duty classification |
A5 |
|
|
| Maximum Wheel Load |
300 |
320.0/180 |
200 |
| Power source |
Three-phase AC. 127~480V 50/60Hz or diesel generator |
